Function and usage:

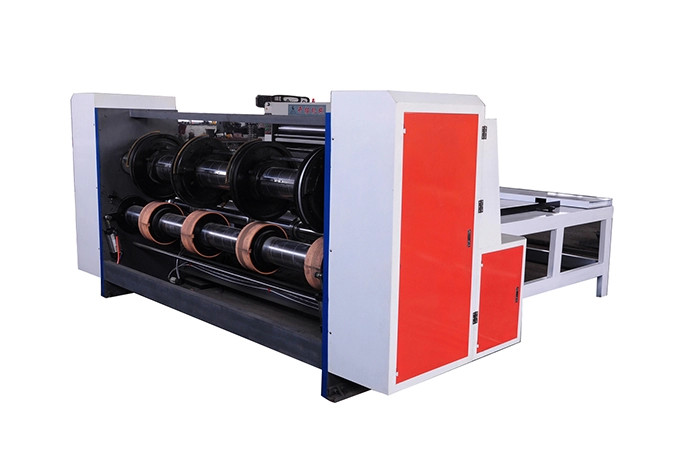

The rotary slotting machine is a combination equipment, it can perform slotting,corner cutting, slitting, creasing one time, Its main characteristics of hand feeding single cardboard, all of corrugated cardboard is ok.
• Feeding table adopts chain style manual feeding paper.
• Slot blade phase adopts 360°electronic position and negative turn slightly adjust,blade axes treatedby rigidity chroming electroplate,and nicety grinding ,firmness durable .
• Gear lubricate ,adopt spout out style cys. Reduce noise,prolong gear using life .
• Adopt hackle blade .
• Can matched stiletto equipment .
The machine bottom knife shaft and pressing line wheel knife shaft with eccentric crosshead shoe adjustment, can through three, five, seven layer paperboard spacing adjust pressure.
• Blades and crease lines Combined moved left and right.
• Transmit gear adopt no clearance coopperation ,debase gear dajust eorr.
• Gear adopt concentrate feed oil lubricate ,debase machine noise ,prolong the use-time.
• Slot reamer plate daopt four reamers synchronization,save exchange board time .
• 360 degrees electric planet gear adjustment phase ,speedness and nicety.
Optional: punch and hole or air hole
Technical parameter
| Model | RS4-B-1222 | RS4-B-1224 | RS4-B-1226 | RS4-B-1422 | RS4-B-1424 | RS4-B-1426 |
| Cutter die diameter | Φ405mm | Φ480mm |
| Max sheet size(mm) | 1200*2200 | 1200*2400 | 1200*2600 | 1400*2200 | 1400*2400 | 1400*2600 |
| Min sheet size(mm) | 350*500 | 350*500 | 350*500 | 400*500 | 400*500 | 400*500 |
| Min slot distance(mm) | 190*50*190*50 | 190*50*190*50 |
| Slot width(mm) | 7mm | 7mm |
| Sheet thickness(mm) | 2-10mm | 2-10mm |
| Work speed (pcs/min) | 0-60 | 0-60 |
| Power (kw) | 3.0 | 3.0 |
| Wall board thickness(mm) | 40 | 40 |
