Double Servo Box Stitching Machine Manual Type Corrugated Carton Box Stapler

Name: Double Servo Box Stitching Machine Manual Type Corrugated Carton Box Stapler
Brand: xinglong
Price: 1 USD

Buy cheap Double Servo Box Stitching Machine Manual Type Corrugated Carton Box Stapler product

Brand Name : xinglong

Model Number : XL-DX

Certification : CE

Place of Origin : Hebei

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50set/month

Delivery Time : 7-15days

Packaging Details : PE film,Wooden box

Condition : New

Length : 1600mm

Thickness : 3/5/7 Ply Cardboard

voltage : 380/415/440V

Function : Nail Box

Feeder Type : Manual

Contact Now

Double Servo Manual Type Corrugated Carton Box Stapler Machine

The machine adopts double servo motor control, high nailing speed, beautiful nail distance and adjustable nail distance. The main parts of the machine head are made of imported alloy steel, which is wear-resistant and has a life expectancy of 3-5 times that of ordinary machines. High, low energy consumption, low failure rate, easy operation, etc., is the ideal nail box equipment for modern carton factories.
Configuration parameters:
1. The servo motor controls the push paper, and the servo motor controls the head to nail.
2. The nail pitch can be adjusted freely from 30 to 120 mm.
3. The number of orders, the number of completed, the remaining quantity, the total length of the nail distance, and the number of nails are displayed on the computer screen.
4, nail speed can be adjusted 160-570 nails / minute.
5. The total motor power is 3KW.
6. Input voltage and frequency: 220V, 50Hz (export products have already met the voltage of the importing country).

Model	Box height(mm)	binding style	Ribbonfil type	Binding speed	Motor
DHJ-600	Single straight nail	1820	280staples/min	600	180w/380v, customized acceptable
DHJ-600	Single oblique nail	1820	280staples/min	600	180w/380v, customized acceptable
DXJ-900	45°double oblique nail	1718	280staples/min	900	370w/380v customized acceptable
DXJ-1200	45°double oblique nail	1718	280staples/min	1200
DXJ-1400	45°double oblique nail	1718	280staples/min	1400
DXJ-1600	45°double oblique nail	1718	280staples/min	1600
DXJ-1800	45°double oblique nail	1718	280staples/min	1800

Double Servo Box Stitching Machine Manual Type Corrugated Carton Box Stapler

Product Tags:

semi auto stitching machine

corrugated stitching machine

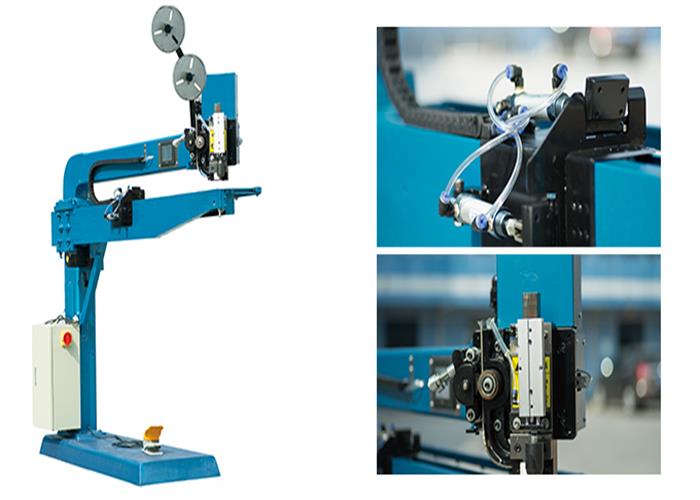

Double Servo Box Stitching Machine Manual Type Corrugated Carton Box Stapler Images
